RGZ Cast Iron / Stainless Steel Centrifugal Pump
Product Overview
The RGZ Series serves as the versatile standard for general industrial fluid transfer. Unlike vortex pumps designed for solids, the RGZ employs a precision closed impeller to prioritize hydraulic efficiency and pressure stability, making it the superior choice for handling clean water and non-abrasive liquids.
Product Features
- Diversified Options for Pump Body Materials
- Imported Sealing Materials
- Stable Performance
- Compact Structure
Technical Specifications
| Model | Diameter | Motor | Performance Parameter | Pump Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | Power (kW) | (Hp) | Voltage (V) | Frequency (Hz) | Speed (r/min) | Max Head (m) | Max/Use Capacity (L/min) | ||
| RGZ-07 | DN20 | DN15 | 0.5 | 0.7 | 3ø-380 | 50 | 2760 | 22 | 150/120 | 15 |
| RGZ-10 (N) (E) | DN32 | DN25 | 0.75 | 1 | 3ø-380 | 50 | 2760 | 25 | 160/133 | 14 |
| RGZ-20 (N) (E) | DN32 | DN25 | 1.5 | 2 | 3ø-380 | 50 | 2760 | 30 | 200/150 | 18.5 |
| RGZ-30 | DN50 | DN32 | 2.2 | 3 | 3ø-380 | 50 | 2760 | 36 | 240/188 | 33 |
| RGZ-40E | DN50 | DN32 | 3 | 4 | 3ø-380 | 50 | 2900 | 40 | 300/255 | 32 |
| RGZ-50E | DN50 | DN40 | 4 | 5 | 3ø-380 | 50 | 2900 | 45 | 367/267 | 55 |
| RGZ-60E | DN50 | DN40 | 4.5 | 6 | 3ø-380 | 50 | 2900 | 52 | 400/285 | 60 |
| RGZ-75E | DN65 | DN50 | 5.5 | 7.5 | 3ø-380 | 50 | 2900 | 45 | 750/500 | 63 |
| RGZ-100E | DN65 | DN50 | 7.5 | 10 | 3ø-380 | 50 | 2900 | 52 | 1000/535 | 65 |
*The above characteristic testing is based on water transfer at normal speed under 20°C. The performance parameter error is approximately ±10%. Pump performance varies depending on the proportion and density of the liquid medium.

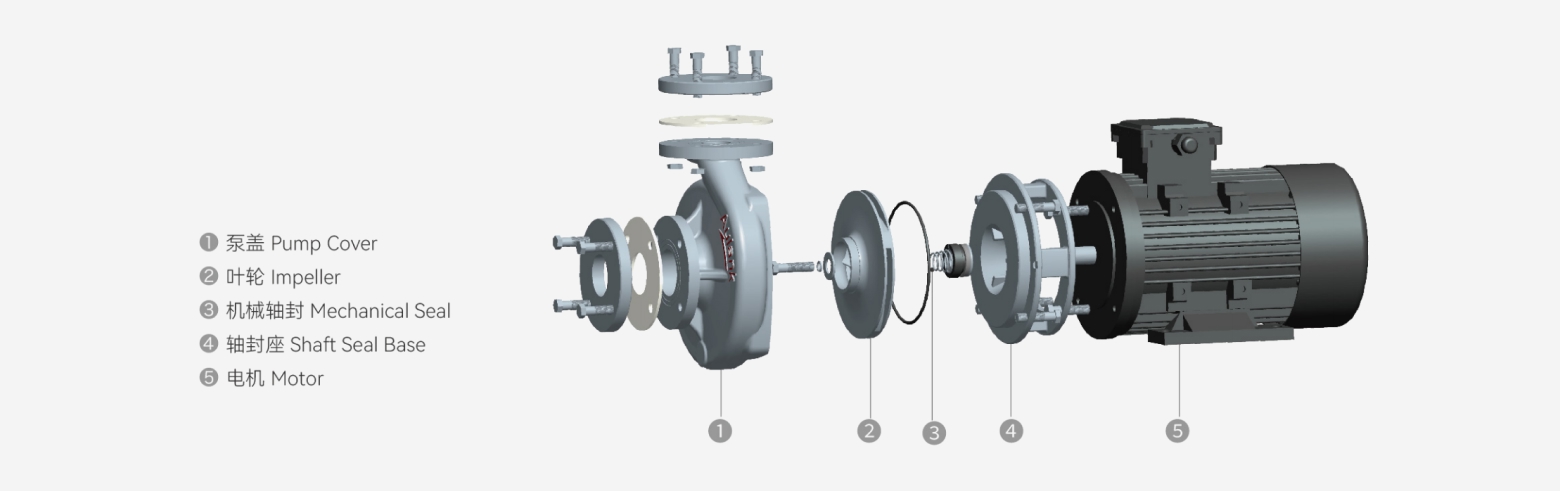

Pump Structure
The RGZ Pump production structure consists of the Pump Cover, Impeller, Mechanical Seal, Shaft Seal Base, and Motor, forming a durable leak-proof high-efficiency fluid transfer assembly.

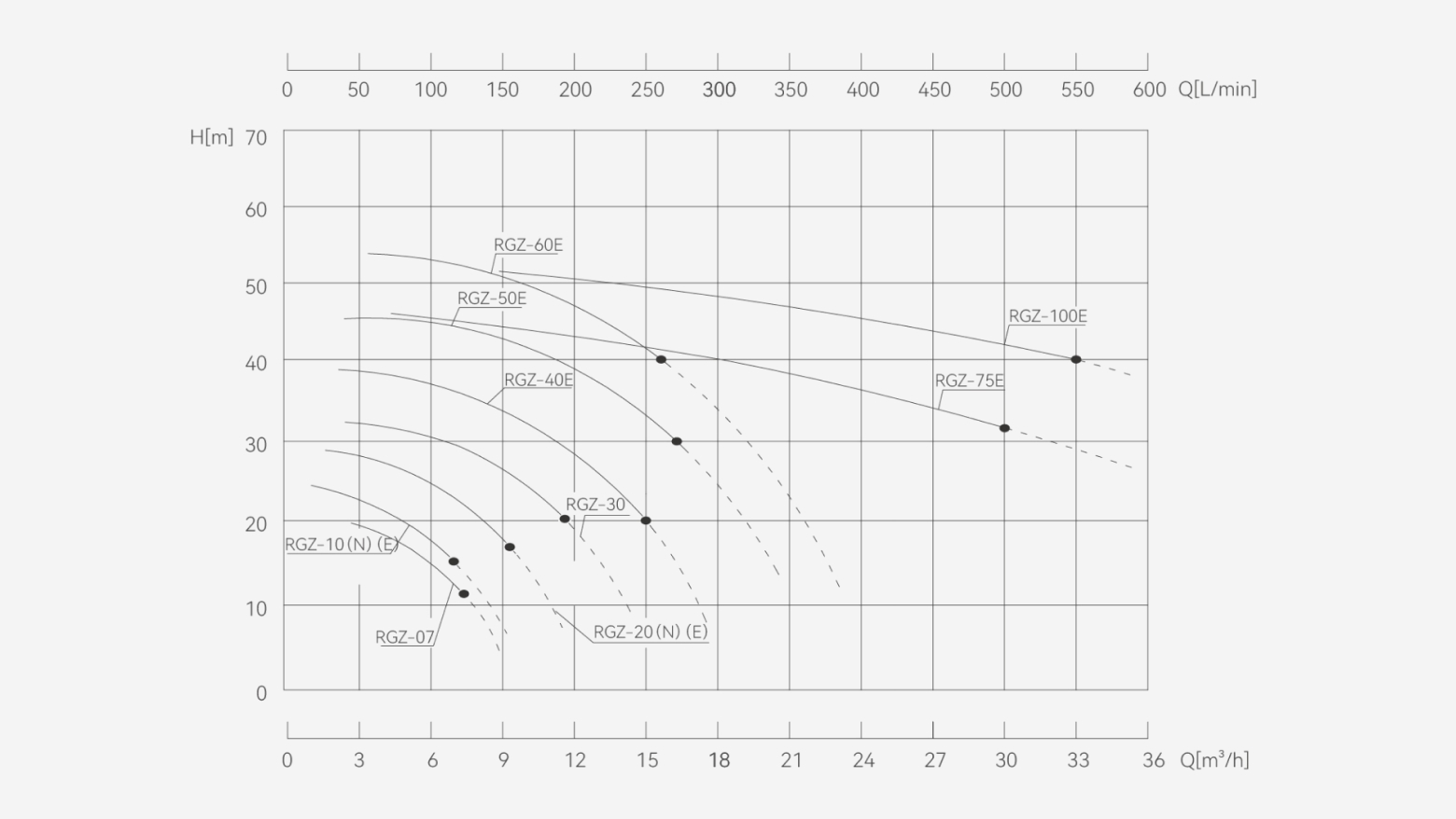

Performance Curve
The RGZ Pump production structure consists of the Pump Cover, Impeller, Mechanical Seal, Shaft Seal Base, and Motor, forming a durable leak-proof high-efficiency fluid transfer assembly.
Working Condition
| Thermal Conductivity Water | Thermal Conductivity Oil | Ethylene glycol | Working Temperature | Maximum Elevation | Max withstand pressure |
|---|---|---|---|---|---|
| +5°C~+160°C | +5°C~+200°C | -30°C~+180°C | -5°C~+40°C | 1000m | 10bar |
Application Area
Mold Temperature Control, Roller Temperature Control, Reactor Jacket Temperature Control, Hot Press Template Temperature Control, Extrusion Barrel Temperature Control, Heat and Cold Exchange System, Food Equipment, etc.

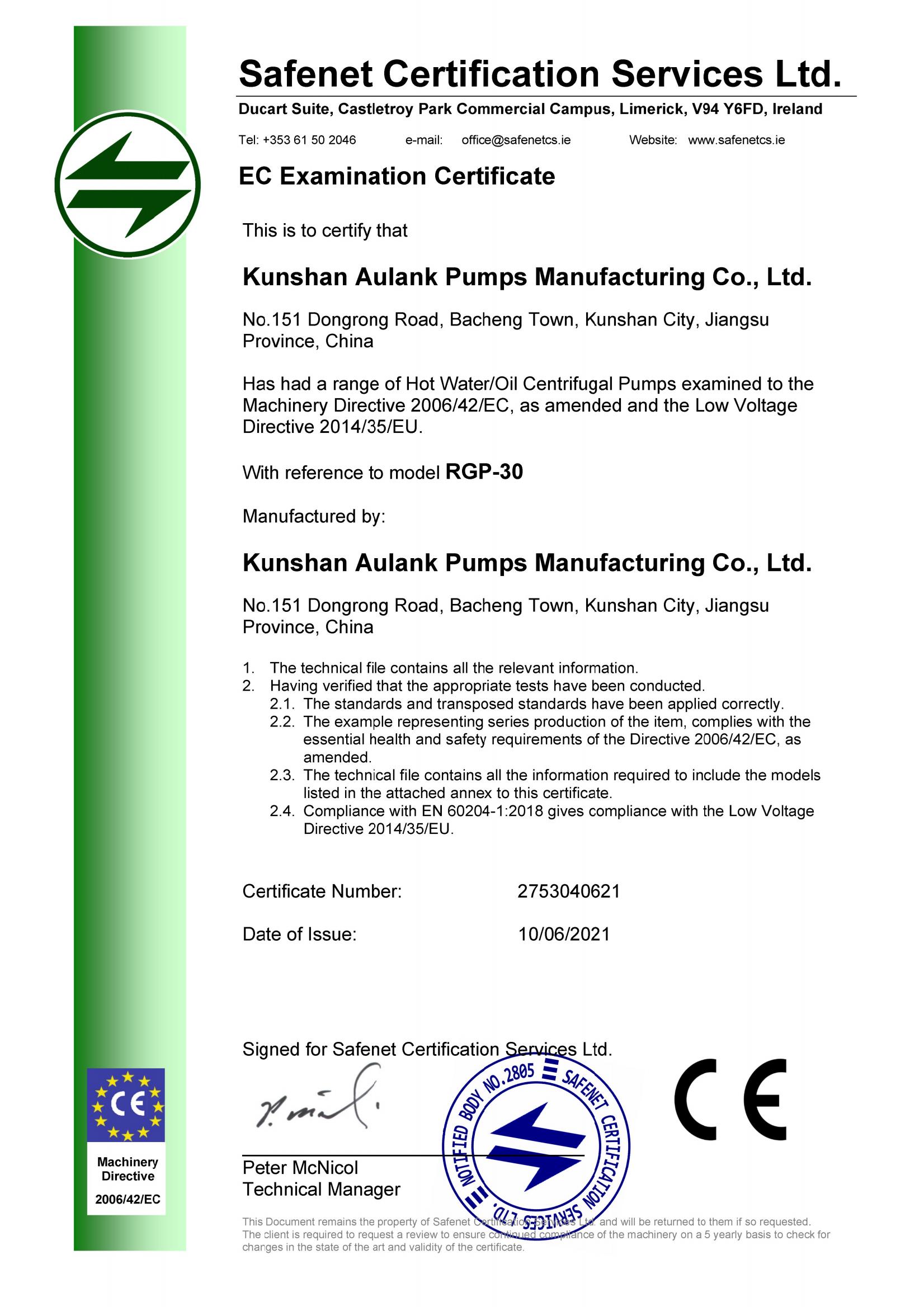

Product Certification
