MDC-X Medium & Large Magnetic Gear Pump
Product Overview
The MDC-X Series fills the critical gap where centrifugal pumps fall short. Utilizing a positive displacement gear mechanism, this pump is engineered to deliver a constant, non-pulsating flow regardless of discharge pressure, making it the ultimate solution for metering and transferring high-viscosity fluids like polyurethanes, resins, and heavy oils.
Product Features
- Noise Level Reduced by 5–13 dB
- Pulsation Reduced by 70%
- Volumetric Efficiency Increased by 5–8%
- Wide Applicability
- Customizable
- Metering Precision of Up to 1‰ Under Stable Working Conditions
- Suitable for High-Vacuum Applications
Technical Specifications
| Pressure | Flow | Viscosity | Pump Housing Material | Seal Form | Connection Mode |
|---|---|---|---|---|---|
| 0-5Mpa Customizable > 5Mpa | 0.01-100m³ | 0.3-100000cps | 304 / 316L / 2205 2507 / QT400 | Magnetic Drive / Mechanical Seal Packing Seal / Lip Seal | Threaded / Flange Quick Clamp / Ferrule |
*The above characteristic testing is based on water transfer at normal speed under 20°C. The performance parameter error is approximately ±10%. Pump performance varies depending on the proportion and density of the liquid medium.
Pump Structure

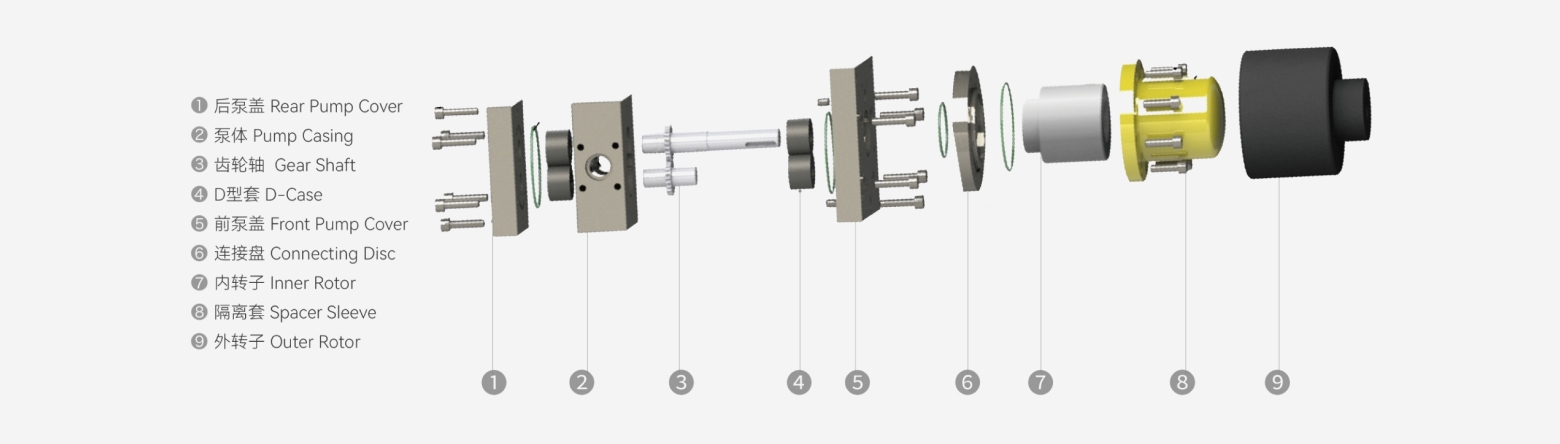

1.The Magnetic Drive Mid-to-Large Scale Gear Pump production structure consists of the Rear Pump Cover, Pump Casing, Gear Shaft, D-Case, Front Pump Cover, Connecting Disc, Inner Rotor, Spacer Sleeve, and Outer Rotor, forming a high-efficiency leak-proof magnetic drive fluid transfer assembly.2.The Mechanical Seal Mid-to-Large Scale Gear Pump production structure consists of the Rear Pump Cover, Pump Casing, Gear Shaft, D-Case, Front Pump Cover, Mechanical Seal, and Sealed Cavity, forming a high-precision leak-resistant industrial fluid transfer assembly.
Working Condition
| Medium Temperature | Medium Density | Ambient Temperature | Maximum Elevation |
|---|---|---|---|
| -40°C~+400°C | 0.6~2.0 | -50°C~+70°C | 5000m |
Application Area
Daily Chemicals, Fine Chemicals, Pharmaceutical Intermediates and Active Pharmaceutical Ingredients (APIs), Textile Printing and Dyeing, Adhesives, Food, Oils and Fats, Biodegradable Plastics, New Materials, Petrochemicals, Coal Chemicals, Modern Agriculture, Small-Scale Test Equipment, High-Temperature and High-Pressure Reactors, Forced Circulation Devices, Thin-Film Evaporators, Molecular Distillation, Distillation Columns, Continuous Flow Reactors, etc.
