AYDH Magnetic Liquid Nitrogen Pump
Product Overview
AYDH Series Ultra-Low Temperature Magnetic Drive Pump The AYDH series is specifically engineered for cryogenic fluid handling. Both the pump body and machined components undergo rigorous deep-cooling treatment to ensure excellent low-temperature toughness and resistance to brittleness. Capable of sustaining pressures up to 5Mpa, it features specialized cryogenic bearings, high-precision impellers, and ceramic isolation shells. This series is the ideal solution for high-pressure, low-flow requirements in ultra-low temperature liquid transfer, offering exceptional reliability, long service life, and unmatched safety.
Product Features
- Medium-temperature Wax Investment Casting
- Fully Enclosed Cast Iron Bracket
- Synchronous Permanent Magnet Zero Leakage
- Gas-liquid Mixture Transportation
- Dry-run Capability
Technical Specifications
| Model | Diameter | Motor | Performance Parameter | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | Power (kW) | (Hp) | Voltage (V) | Frequency (Hz) | Speed (r/min) | Max/Rated Head (m) | Max Capacity (L/min) | |
| AYDH-20 | DN32 | DN25 | 1.5 | 2 | 3ø-380 | 50 | 2760 | 70/50 | 5 |
| AYDH-30 | DN32 | DN25 | 2.2 | 3 | 3ø-380 | 50 | 2760 | 74/60 | 5.4 |
| AYDH-40 | DN40 | DN32 | 3 | 4 | 3ø-380 | 50 | 2900 | 81/70 | 8.1 |
| AYDH-75 | DN50 | DN40 | 5.5 | 7.5 | 3ø-380 | 50 | 2900 | 73/50 | 11.1 |
*The above characteristic testing is based on water transfer at normal speed under 20°C. The performance parameter error is approximately ±10%. Pump performance varies depending on the proportion and density of the liquid medium.
Pump Structure

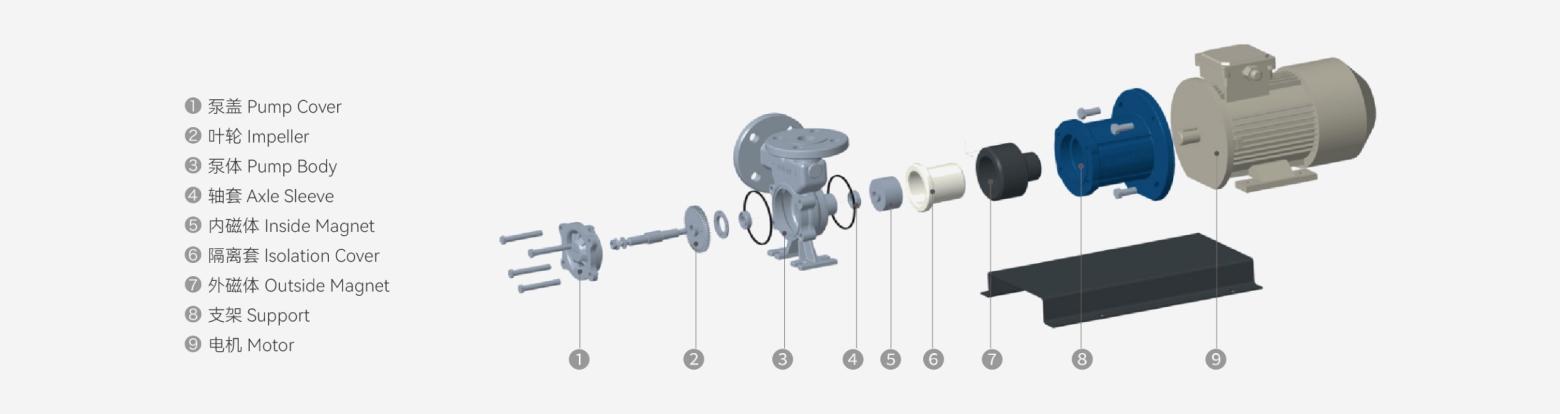

The AYDH Pump structure consists of the Pump Cover, Impeller, Pump Body, Axle Sleeve, Inside Magnet, Isolation Cover, Outside Magnet, Support, and Motor, forming a leak-free cryogenic magnetic drive assembly
Performance Curve

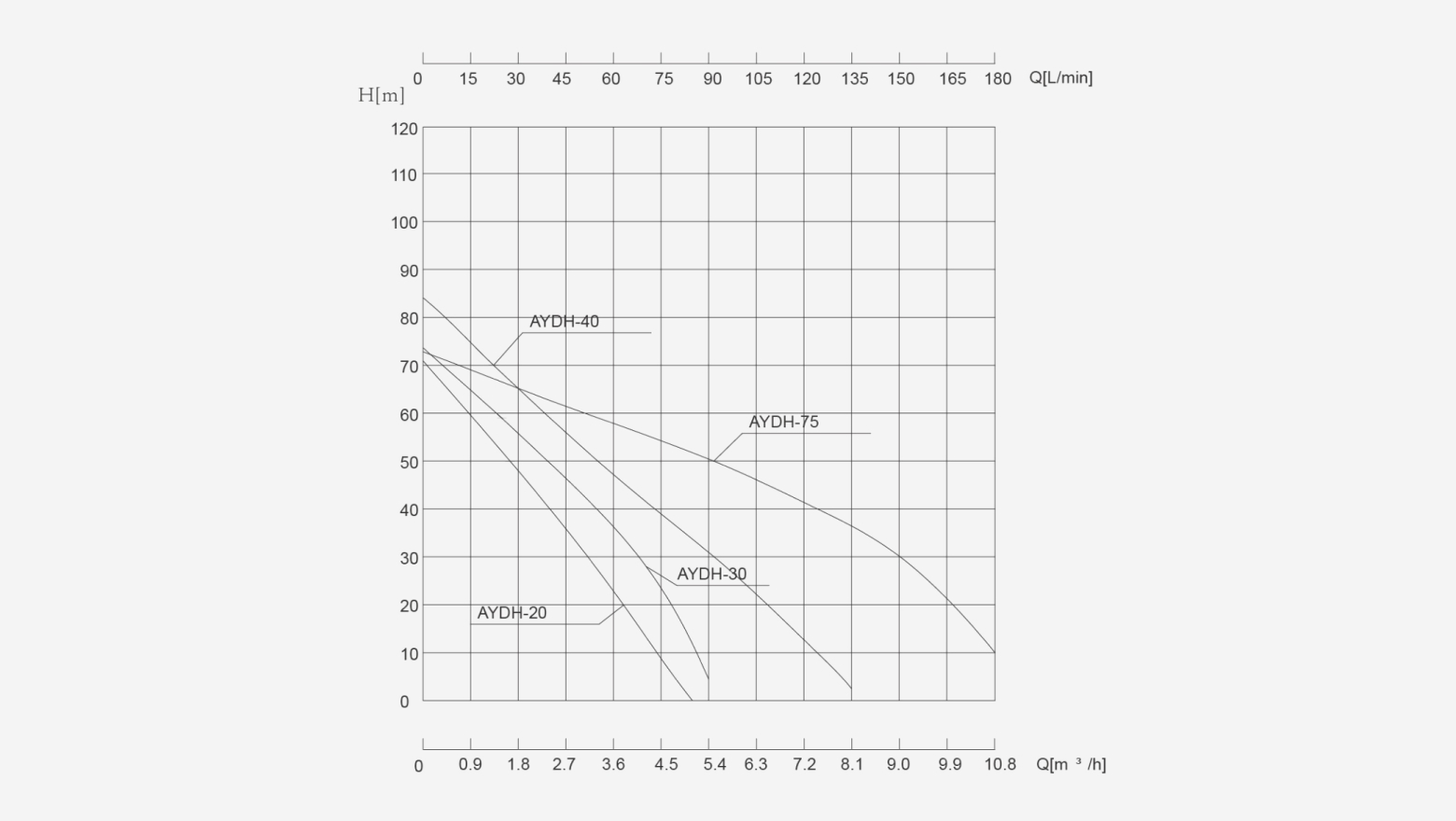

The AYDH Pump structure consists of the Pump Cover, Impeller, Pump Body, Axle Sleeve, Inside Magnet, Isolation Cover, Outside Magnet, Support, and Motor, forming a leak-free cryogenic magnetic drive assembly
Working Condition
| Medium Temperature | Medium Density | Ambient Temperature | Maximum Elevation | Max Withstand Pressure |
|---|---|---|---|---|
| -196°C ~ +400°C | 0.6 ~ 2.0 | -50°C ~ +70°C | 5000m | 70bar |
Application Area
Liquid nitrogen superconductivity experiments, freeze-drying equipment, VOCs waste gas recovery systems, biological sample storage, LNG gas filling/dispensing systems, etc.
